碎碎念
首先的话，我发现这个小手机，似乎底层是没有打断电源充电的功能的，只要插上数据线就会一直充电，这一点的话就是很麻烦了，因为如果长期出去较高的电量的话，电池毫无疑问，又会鼓包了，但是如果不充电的话，又懒得频繁去插拔数据线，（而且不时还会忘记充电导致关机），上了ACC也是没用的，好像底层就不支持，但是我翻遍了底层的文件，发现了两个有意思的开关
首先的话就是
/sys/class/power_supply/battery/current_now 这个是可以获取当前的充电电流的
另一个是
/proc/charger/force_current_limit 这个的功能就是可以调节最大的充电电流的。
那么问题就来了，你说没有开关，你设置为0电流不就是可以了嘛，很明显是不可以的。
因为系统默认就是设置为0，就是默认充电电流

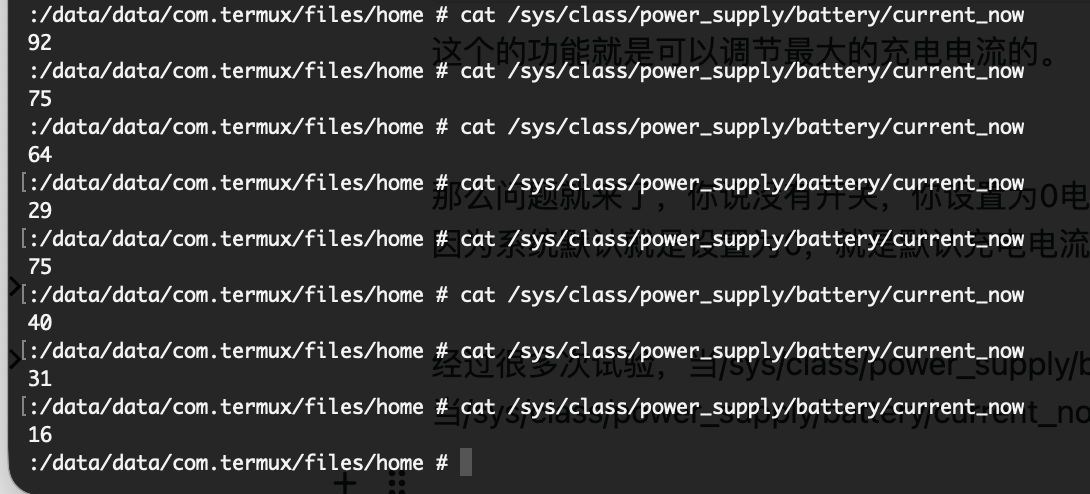

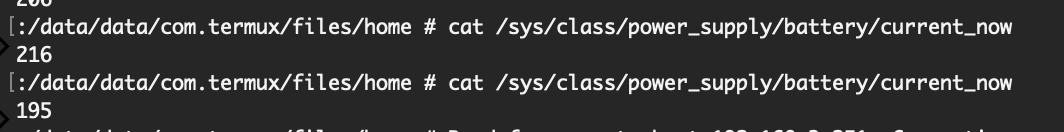

经过很多次试验，当/sys/class/power_supply/battery/current_now ，为正数是电池正在耗电，正在消耗

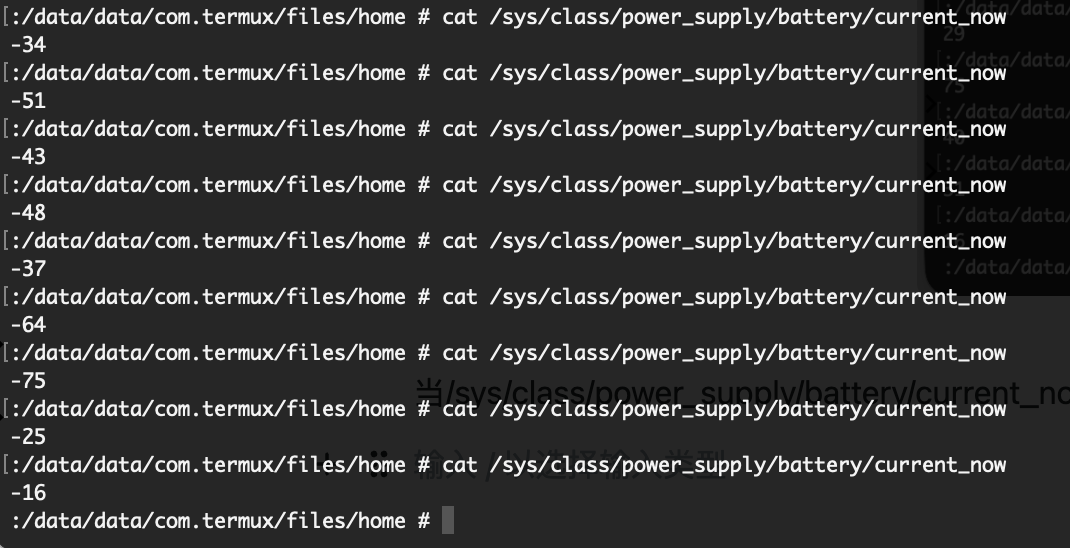

当/sys/class/power_supply/battery/current_now ，为负数的时候，电池正在充电

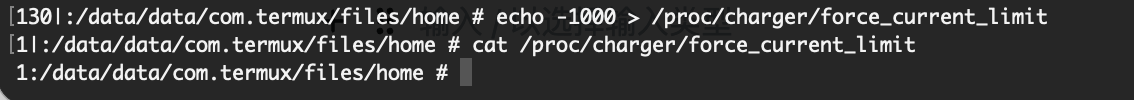

并且，不能设置为负数，也就是这个数值最小只能设置为1，这就是充电的最小电流
但是呢，因为系统控制原因，不可能达到这么惊喜的电源控制，只是把档位调整为最小，但是实际上依旧有电流源源不断的充电
那么就只能再打开手机自带的GT模式+手电筒
这样的话，就可以很好的实现功耗上涨，抵消掉涓流充电，实现在这个档位减少电量。
然后就可以实现，在电量较低的时候进行充电，将电流档位跳高，电量较高的时候，将档位调低，进行消耗电量。
具体代码实现
import os
import sys
import time
import threading
import fcntl
from flask import Flask, request, jsonify, render_template_string
# --- 单例模式锁 ---
LOCK_FILE = "/data/data/com.termux/files/home/battery_server.lock"
try:
lock_fd = open(LOCK_FILE, 'w')
fcntl.lockf(lock_fd, fcntl.LOCK_EX | fcntl.LOCK_NB)
except IOError:
print("⚠️ Battery Watchdog is already running. Exiting...")
sys.exit(0)
# --- Root 权限检查 ---
if os.geteuid() != 0:
print("❌ This script must be run as root! Please use 'tsu' or 'sudo'.")
sys.exit(1)
app = Flask(__name__)
# 底层节点路径
CAPACITY_NODE = "/sys/class/power_supply/battery/capacity"
CURRENT_NOW_NODE = "/sys/class/power_supply/battery/current_now"
LIMIT_NODE = "/proc/charger/force_current_limit"
config = {
"high_threshold": 80,
"low_threshold": 20
}
def read_node(path):
try:
with open(path, "r") as f:
return int(f.read().strip())
except Exception:
return 0
def write_node(path, val):
try:
with open(path, "w") as f:
f.write(str(val))
except Exception as e:
print(f"Write error: {e}")
def initialize_charge_state():
"""确保启动时 limit 节点为 1 或 1000"""
cap = read_node(CAPACITY_NODE)
current_limit = read_node(LIMIT_NODE)
if current_limit in (1, 1000):
print(f"Init: Limit already valid ({current_limit}), no change.")
return
target = 1 if cap >= config["high_threshold"] else 1000
print(f"Init: Current limit is {current_limit}, setting to {target}...")
write_node(LIMIT_NODE, target)
time.sleep(0.2)
new_limit = read_node(LIMIT_NODE)
if new_limit != target:
print(f"❌ FATAL: Failed to set limit to {target}. Read back {new_limit}. "
"Check root or kernel support.")
sys.exit(1)
print(f"✅ Init: Successfully set limit to {target}.")
# --- 后台看门狗线程 ---
def watchdog_loop():
while True:
cap = read_node(CAPACITY_NODE)
current_limit = read_node(LIMIT_NODE)
if cap >= config["high_threshold"]:
if current_limit != 1:
write_node(LIMIT_NODE, 1)
print(f"Capacity {cap}. Stop charge (Limit=1).")
elif cap <= config["low_threshold"]:
if current_limit != 1000:
write_node(LIMIT_NODE, 1000)
print(f"Capacity {cap}. Start charge (Limit=1000).")
time.sleep(2)

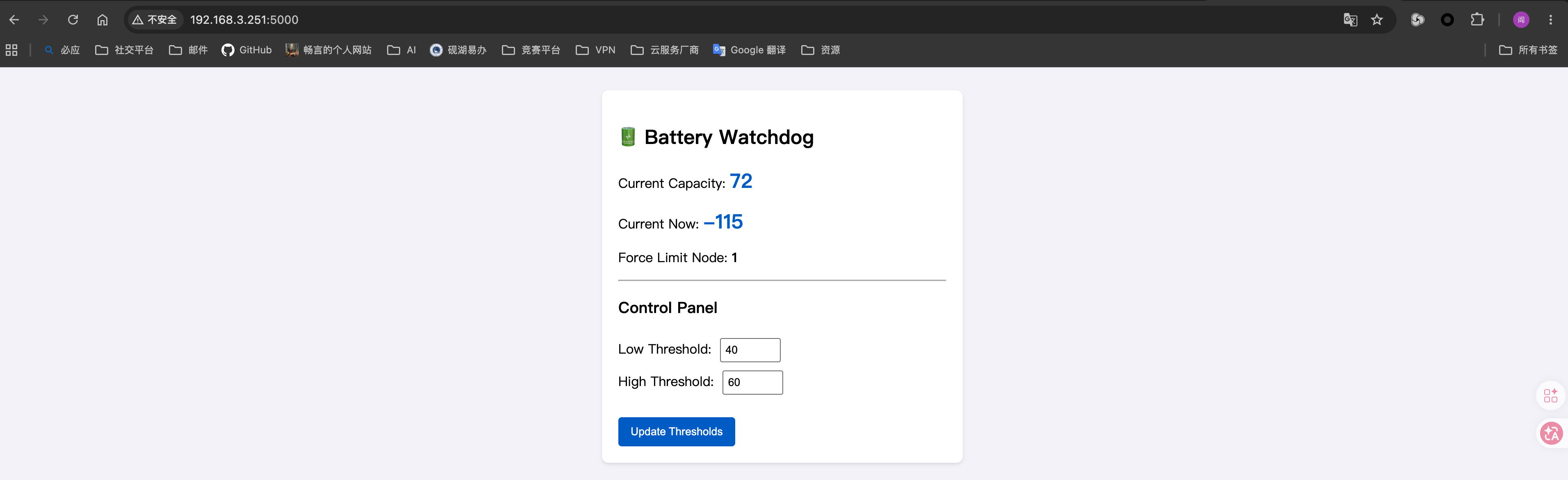

# --- Web UI 与 API ---
HTML_TEMPLATE = """
<!DOCTYPE html>
<html>
<head>
<title>Battery Homelab Watchdog</title>
<meta name="viewport" content="width=device-width, initial-scale=1">
<style>
body { font-family: -apple-system, sans-serif; padding: 20px; background: #f4f4f9; }
.card { background: white; padding: 20px; border-radius: 8px; box-shadow: 0 2px 4px rgba(0,0,0,0.1); max-width: 400px; margin: 0 auto; }
.stat { font-size: 24px; font-weight: bold; color: #0066cc; }
input { width: 60px; padding: 5px; margin: 5px; }
button { background: #0066cc; color: white; border: none; padding: 10px 15px; border-radius: 4px; cursor: pointer; }
button:hover { background: #0052a3; }
</style>
</head>
<body>
<div class="card">
<h2>🔋 Battery Watchdog</h2>
<p>Current Capacity: <span class="stat" id="capacity">{{ cap }}</span></p>
<p>Current Now: <span class="stat" id="current_ma">{{ current_ma }}</span></p>
<p>Force Limit Node: <b id="limit_val">{{ limit_val }}</b></p>
<hr>
<h3>Control Panel</h3>
<form action="/update" method="post">
<label>Low Threshold: </label>
<input type="number" name="low" value="{{ low }}" max="90" min="5"><br>
<label>High Threshold: </label>
<input type="number" name="high" value="{{ high }}" max="100" min="10"><br><br>
<button type="submit">Update Thresholds</button>
</form>
</div>
<script>
// 自动刷新数据，但不覆盖用户正在编辑的输入框
setInterval(function() {
fetch('/status')
.then(response => response.json())
.then(data => {
document.getElementById('capacity').textContent = data.cap;
document.getElementById('current_ma').textContent = data.current_ma;
document.getElementById('limit_val').textContent = data.limit_val;
// 注意：这里故意不更新表单的 input，避免干扰用户输入
})
.catch(error => console.error('Status update error:', error));
}, 2000);
</script>
</body>
</html>
"""
@app.route("/")
def index():
cap = read_node(CAPACITY_NODE)
current_ma = read_node(CURRENT_NOW_NODE)
limit_val = read_node(LIMIT_NODE)
return render_template_string(
HTML_TEMPLATE,
cap=cap,
current_ma=current_ma,
limit_val=limit_val,
low=config["low_threshold"],
high=config["high_threshold"]
)
@app.route("/status")
def status():
return jsonify({
"cap": read_node(CAPACITY_NODE),
"current_ma": read_node(CURRENT_NOW_NODE),
"limit_val": read_node(LIMIT_NODE),
"low": config["low_threshold"],
"high": config["high_threshold"]
})
@app.route("/update", methods=["POST"])
def update():
try:
new_low = int(request.form.get("low"))
new_high = int(request.form.get("high"))
if new_low < new_high:
config["low_threshold"] = new_low
config["high_threshold"] = new_high
except:
pass
return index()
if __name__ == "__main__":
initialize_charge_state()
t = threading.Thread(target=watchdog_loop, daemon=True)
t.start()
app.run(host="0.0.0.0", port=5000, threaded=True, use_reloader=False)
